Applications :

  • Dredge Pipe Lines
  • Marine Hoses
  • Cable Hoses
  • Aquaculture breeding area cages
  • Swimming Pool markers
  • Ocean Filth blockers

Features :

  • Light weight -easy Installation – secure nut bolts system and tightening belts
  • Quick online maintenance without taking off line.
  • Marine grade Galvanized accessories.
  • Thick PE shell with eco friendly PU filling for maximum impact resistance.
  • Superb flexible system for rough sea conditions

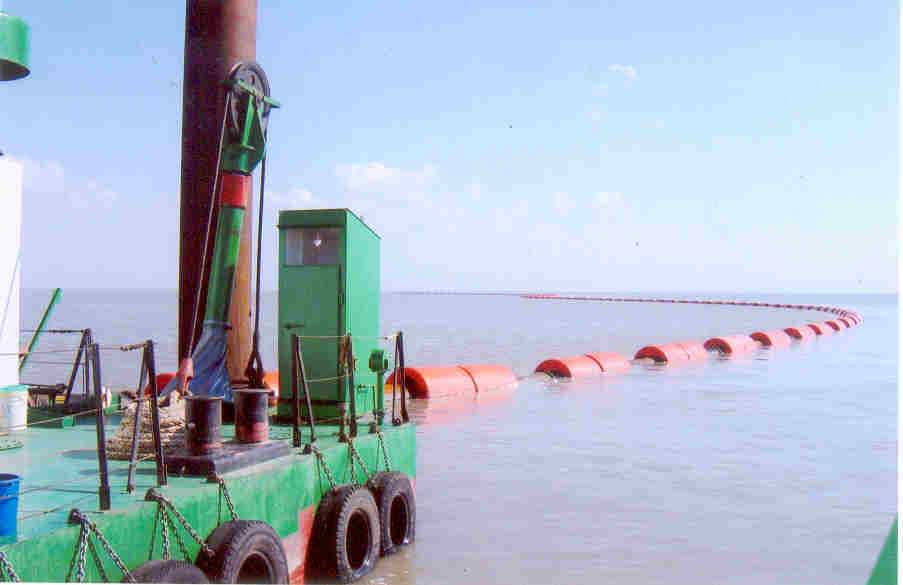

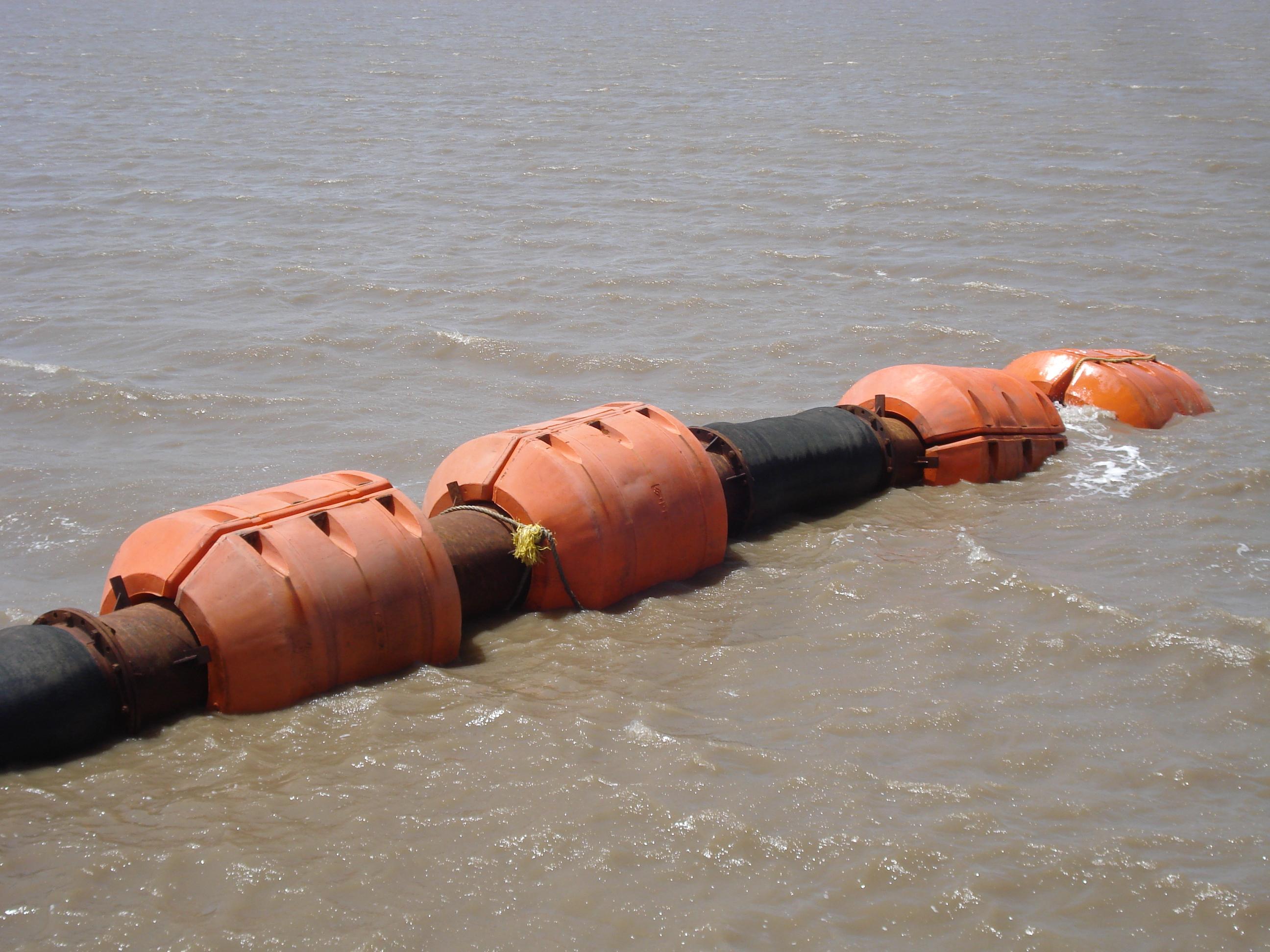

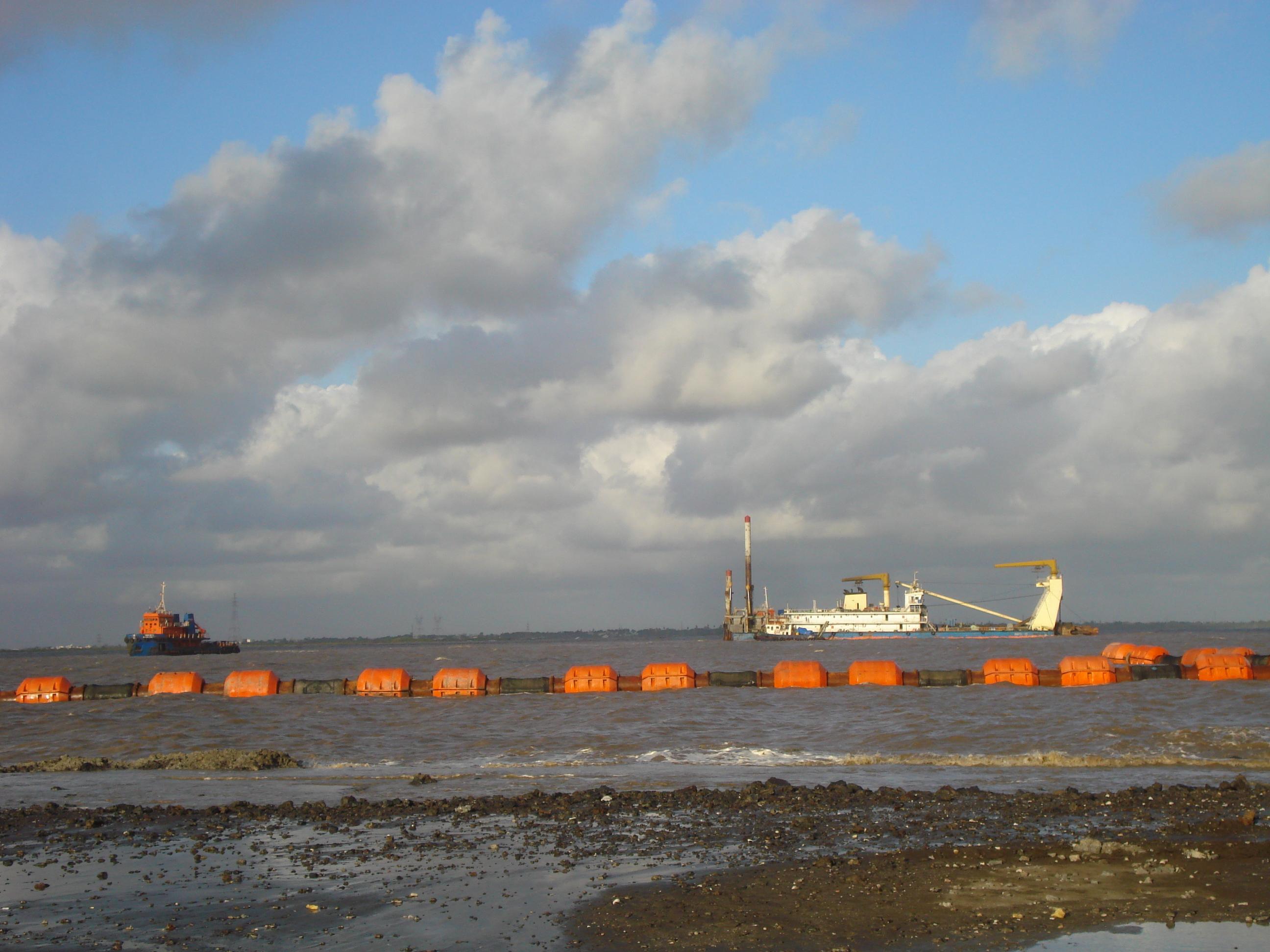

The modular dredge ring floats are composed of two empty half shells and can be filled with closed cell environmentally friendly PU foam on specific customer request. The parts have in-built galvanized parts and are provided with galvanized accessories nuts and bolts etc. For anti corrosive environment. The two halves are first connected with the nuts bolts after placing them around the pipes and then finally for double strength are tied with high tension belts.

At present, our main products is PE FLOAT. RING FLOATS are generally molded by a high wear resistant 7 marine grade polyethylene. Strength and performance are the main criteria for design of these floats. Many different types of ring floats can also be custom built to suit requested application.

Dredge ring floats are available for pipe diameters 250 till 850mm in modular and single pass through ring float design.

Hose Pipe Size Outer Diameter Hose Outer Diameter OD Hose Inner Dia. OD Hose Length Hose Approx Weigth Hose Approx Buoyancy Pieces 40″ HC
Mm Inches Mm Mm Mm Kgs. Kgs. Sets
250 10″ 750 260 750 34 225 144
315 12″ 850 325 1100 54 425 60
355 14″ 850 365 1100 54 400 60
400 16″ 850 410 1100 54 375 60
450 18″ 850 460 1100 54 350 60
500 20″ 1175 515 1100 100 785 40
560 22″ 1175 575 1100 100 735 40
630 24″ 1300 650 1300 150 1050 27
650 26″ 1300 685 1300 150 1000 27
700 28″ 1550 715 1300 200 1600 22
750 30″ 1550 765 1300 200 1525 23
800 32″ 1700 820 1300 225 1965 13
  • Closed Cell Polyurethane filling is an optional feature and floats are available as empty shells as per customer requirements.
  • Cell Foam used is ‘Green Eco – friendly type’.
  • PN – indicates Pressure Rating – e.g. PN 16 – suitable for 16 kg/cm2.
  • SDR – Standard Dimension Ratio ( pipe OD to its thickness).
  • Accessories – galvanized nuts, bolts & tensioning straps provided with the floats as standard parts. Tension Machine available separately.
