Application :

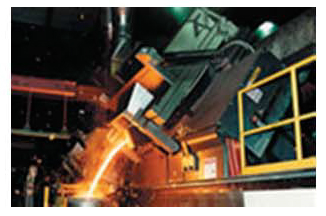

Designed for use as a coolant hose in melting furnaces at steel mills and other high temperature environments.

Features :

Special Mino flex rubber tube is used to with stand 100 deg C hot water. Vulcanized asbestos cover with stands splashes of molten steel and radiated heat up to 400 deg C.

SERP ref # Hose ID (inch) Hose ID (mm) Mean OD mm Max. WP
(Bar-Psi)
Min. BP
(Bar-Psi)
M-FCH-8 1/2″ 12.70 24.30 10-142 32-457
M-FCH-12 3/4″ 20.00 33.00 10-142 32-457
M-FCH-16 1″ 25.40 38.00 10-142 32-457
M-FCH-20 1 1/4″ 31.80 49.60 10-142 32-457
M-FCH-24 1 1/2″ 38.00 55.80 10-142 32-457
M-FCH-28 1 3/4″ 45.00 62.50 10-142 32-457
M-FCH-32 2″ 50.80 68.00 10-142 32-457
M-FCH-36 2 1/4″ 57.00 74.50 10-142 32-457
M-FCH-40 2 1/2″ 63.50 81.20 10-142 32-457
M-FCH-48 3″ 76.00 94.50 10-142 32-457
M-FCH-56 3 1/2″ 89.00 107.80 10-142 32-457
