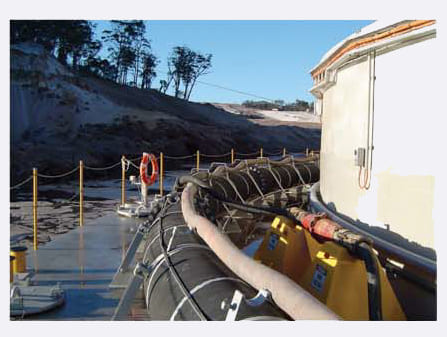

Application :

For use in the place of steel or cast iron pipe for conveying abrasive & corrosive materials such as sand, Gravel, Cement, slurry, salt, ashes, pulverized slag and other materials. Highly recommended where flexibility of hose is essential.

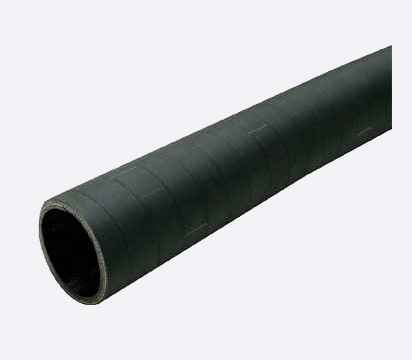

Features :

Soft gum rubber tube of (1/4 to 3/8 thickness with 45+5 shore hardness). Reinforced with nylon cords & high tensile steel wire for light weight & high flexibility. An EPDM rubber outer cover also available.

WP ranging 5 to 20kg/cm
Size Range: 2″ to 40″ dia

SERP ref # Hose ID inch Hose OD mm Max.WP(Bar-PSI) Min.BP(Bar-PSI)
MPWH-32 2″ 50.80 10-142 40-571
MPWH-48 3″ 76.00 10-142 40-571
MPWH-64 4″ 102.00 10-142 40-571
MPWH-80 5″ 127.00 10-142 40-571
MPWH-96 6″ 152.00 10-142 40-571
