Features :

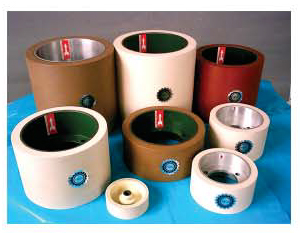

These rollers are used in rice mill are also called as friction rollers. The use of these rollers is to remove the husk from the rice. In practice, there will be two rollers which rotate in opposite direction. The paddy flows between these rollers and separates the husk and rice. During this separation a high amount of the friction is induced in these rollers. They are made from synthetic rubber & various friction resistant additives.

Types :

There are basically 3 types of rice mill rollers depending on the metallic shell wrapped inside roller.

  1. Wire netting without key.
  2. Perforated Shell & key type.
  3. Metal Sleeve type.
Si. No. Description Length mm OD mm ID mm
1 Scheule / Dandekar 10″ DL/ DS 260 223 158.5/157
2 Stake / Binny F2/F3 10″ / DMR 10 254 256 202/203
3 Stake / Binny 8″ 203 223 184
4 Stake F2 / Alum/MS/Cast Iron Drum Type 254 254 194
5 Stake / Binny Dm 6″ 152 223 184
6 Scheule / Dandekar 6″ DS/DL 152 223 157/158.5
7 Scheule /DS/DL 5″ 127 223 157/158.5
8 Mini Rajpura 6″ * 4″ *1″ 150 150 100
9 DMR 6″ 152 223
10 DMR 4″ 101 223
11 14*8-15/6i + 356 227
12 20*10i+ 508 225
