Application :

Used as bent carrying line between tank and Air gun, Handles spraying solvents, Lacquers, petroleum products and paints.

Features :

Specially compounded high NBR black tube provides long life, unaffected by action of paints and solvents. Color or texture of paint passing through the hoses will not stain. Braided with synthetic yarn. Outer covers weather and abrasion resistant. Generally available with yellow outer cover for easy identification.

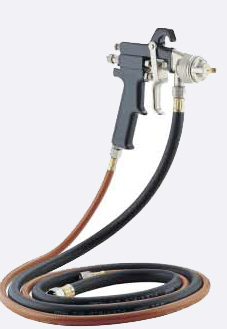

Paint Spray Hose

SERP ref #Hose ID inchHose ID mmMean OD mmMax.WP(BAR-PSI)Min.BP(BAR-PSI)

M-PS-5 5/16″ 08.00 17.20 10-142 40-571
M-PS-6 3/8″ 09.53 19.60 10-142 40-571
M-PS-8 1/2″ 12.70 23.00 10-142 40-571

Construction :

Tube: Modified nitrile rubber black. Reinforcement: Single braid of high tenacity synthetic yarn, Cover: Modified nitrile rubber black.

Application :

Recommended for very high pressure spraying of water based pesticides & chemicals in agriculture & forestry. Oil resistant tube ensures longer life.

SERP ref #Hose ID inchHose ID mmMean OD mmMax.WP(BAR-PSI)Min.BP(BAR-PSI)

M-SS-6 3/8″ 09.50 21.00 55-785 165-2357
M-SS-8 1/2″ 12.70 24.60 55-785 165-2357
