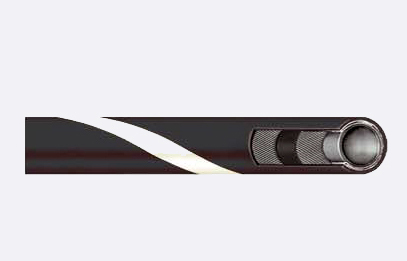

Steam Hose (High Tenacity Synthetic Yarn Braided)
Application :
For general steam service up to 100 PSI at 180 c. Used especially in rail, road, yards, docks, refiners and chemical works. Recommended for hose where external abuse is high.
Features :
Sturdy heat resistant rubber is used for tube. Reinforced with synthetic yarn, these hoses have got a safety factor of 1:10. Specially compounded outer cover is highly abrasion and heat resistant resulting in longer life. Less wall gauge-less bulk-more flexibility are the special qualities of steam hose. For heavy duty continuous operation, EDPM tube and cover are recommended.
| SERP ref # | Hose ID inch | Hose OD mm | Mean OD mm | Max.WP(Bar-PSI) | Min.BP(Bar-PSI) |
| M-SH-20 | 1 1/4″ | 31.80 | 43.50 | 7-100 | 70-1000 |
| M-SH-24 | 1 1/2″ | 38.00 | 50.60 | 7-100 | 70-1000 |
| M-SH-32 | 2″ | 50.80 | 63.50 | 7-100 | 70-1000 |
