Application :

For general steam service upto 100 PSI at 180 c. Used especially in rail, road, yards,docks, refiners and chemical works. Recommended for hose where external abuse is high.

Features :

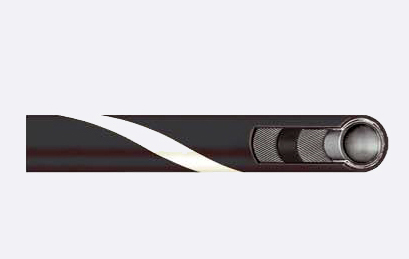

Sturdy heat resistant rubber is used for tube. Reinforced with synthetic yarn, these hoses have got a safety factor of 1:10. Specially compounded outer cover is highly abrasion and heat resistant resulting in longer life. Less wall gauge-less bulk-more flexibility are the special qualities of steam hose. For heavy duty continuous operation, EDPM tube and cover are recommended.

SERP ref # Hose ID inch Hose OD mm Mean OD mm Max.WP(Bar-PSI) Min.BP(Bar-PSI)
M-SH-8 1 /2″ 12.70 21.50 7-100 70-1000
M-SH-12 3/4″ 20.00 31.00 7-100 70-1000
M-SH-16 1″ 25.40 36.60 7-100 70-1000
