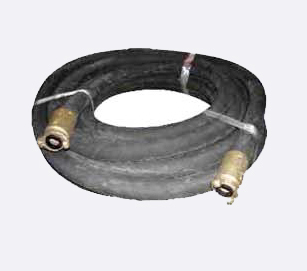

Construction :

    • Tube : Specially Compounded nitrile rubber (black).
    • Reinforcement : Single braid of high tensile steel wire.
    • Cover : Option 1 : Specially compounded highly abrasion resistant rubber (black).
    • Option 2 : Higly abrsion resistant modified rubber (yellow).
      * All sizes with perforated cover

Application :

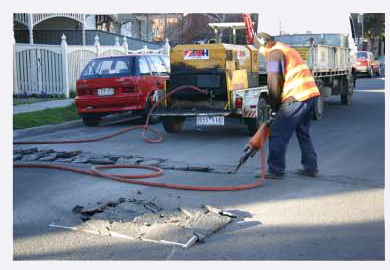

Recommended for heavy duty, high pressure use on industrail, construction & pneumatic mining applications, requring an extra heavy duty hose with an oil resistant tube and abrasion resistant cover.

SERP ref # Hose ID inch Hose ID mm Mean OD mm Max.WP(BAR-PSI) Min.BP(BAR-PSI)
M-CCH-8 1/2″ 12.70 20.20 34.50-492 138-1971
M-CCH-10 5/8″ 16.00 23.60 34.50-492 138-1971
M-CCH-12 3/4″ 20.00 28.30 34.50-492 138-1971
M-CCH-16 1″ 25.40 36.60 34.50-492 138-1971
M-CCH-20 1 1/4″ 31.80 44.20 34.50-492 138-1971
M-CCH-24 1 1/2″ 38.00 50.50 34.50-492 138-1971
M-CCH-32 2″ 50.80 63.50 34.50-492 138-1971
